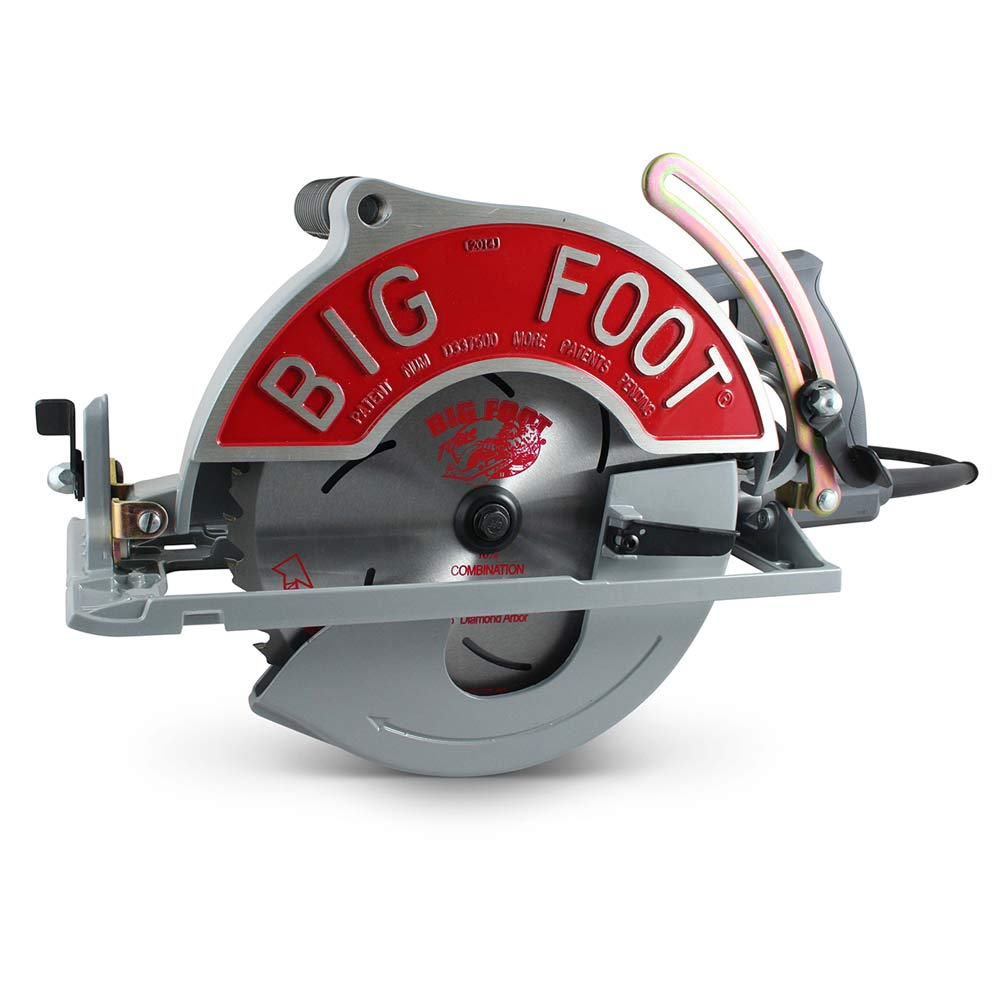

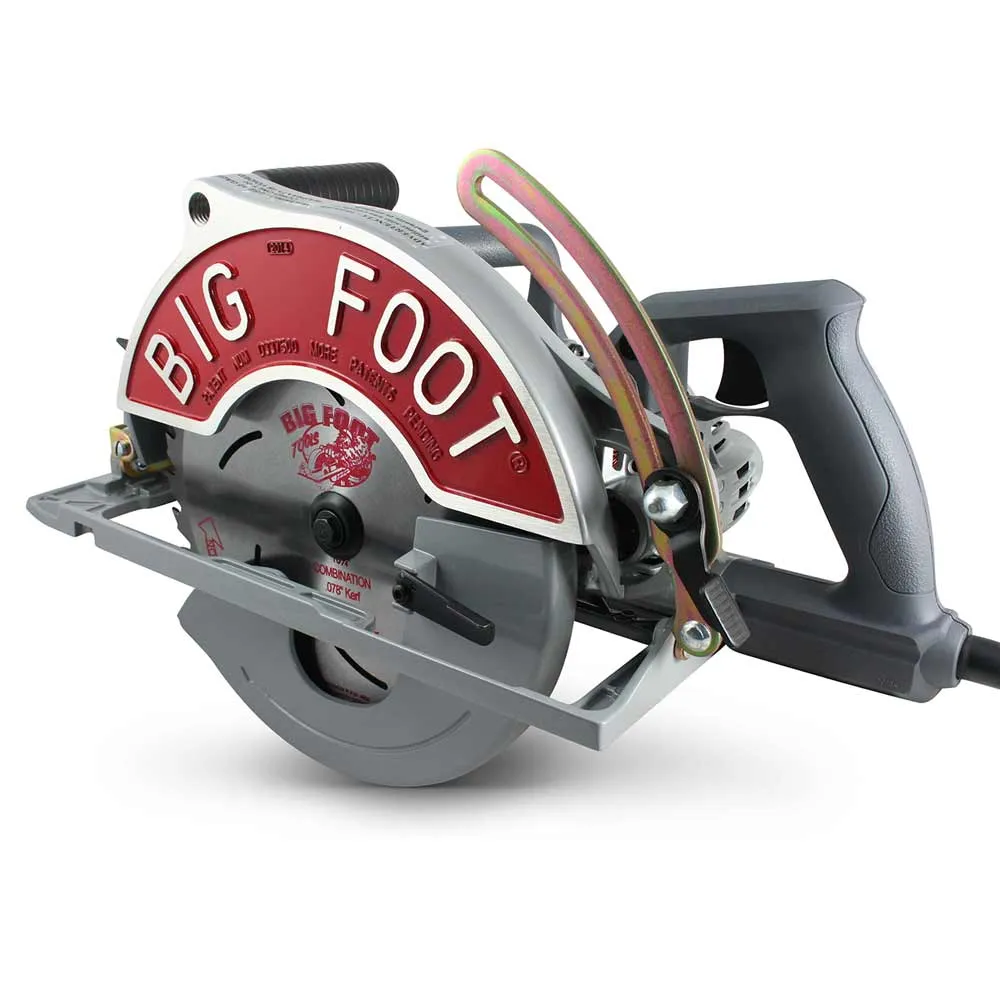

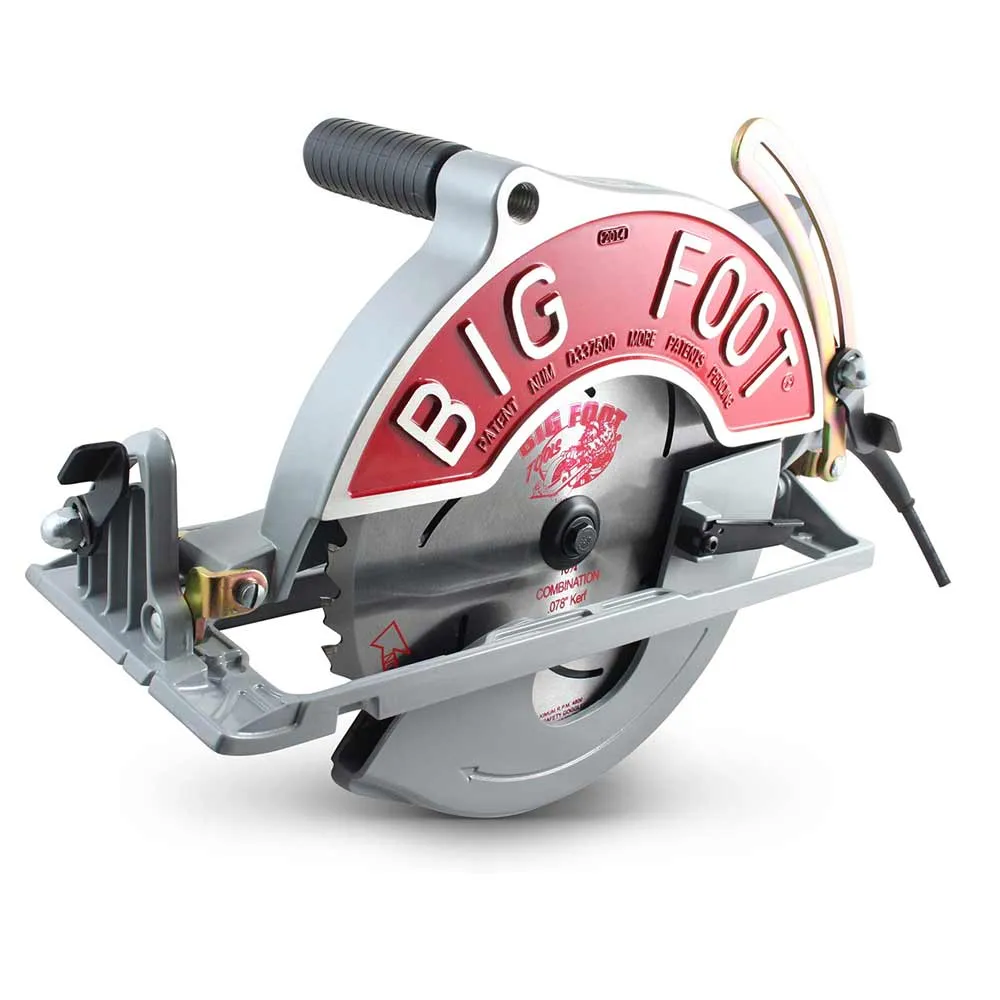

Big Foot 10-1/4″ Worm Drive Beam Saw

The one that put Big Foot Tools on the map! The Big Foot 10-1/4″ Worm Drive Beam Saw was designed by a professional tradesman with 27 years of practical, on-the-job, carpentry, framing and remodeling experience.
While the Big Foot Saw was originally designed for cutting 2 plates in one pass, we quickly found it could also cut any 4x materials in one pass, just as easily.
The Big Foot Saw will cut your 4x headers, double 2x sandwich headers, exposed beams for decks, porches, 4×4 fence posts and 7 sheets plus of 1/2″ Plywood with one pass.

Call Please Call To Order: (541) 485-2800

You may also like…

  • Stiletto Tools TI14MS Hammer

    Stiletto TI14MS 14 oz. Titanium Milled Face Straight 18″ Framer

    $104.95
    Add to cart
  • SafeWaze FS160

    SafeWaze PRO Construction Harness – FS160 – XL

    $160.00
    Add to cart
  • SafeWaze FS160

    SafeWaze PRO Construction Harness – FS160 – L

    $160.00
    Add to cart
  • Stiletto TiBone TBII-15 Milled Face Curved 18" Ti Hdl.

    Stiletto TiBone TBII-15 Milled Face Curved 18″ Ti Hdl.

    $224.95
    Add to cart
  • Big Foot Saw Blade 36 Teeth

    Big Foot 10 1/4″ x 36 Tooth Carbide Tipped General Purpose Blade

    $34.95
    Add to cart

Product Description

When cutting at a 90 degree angle with the Big Foot 10-1/4″ Worm Drive Beam Saw the depth of cut is 3-7/8″
When cutting at a 45 degree angle with the Big Foot 10-1/4″ Worm Drive Beam Saw the depth of cut is 2-3/4″
Big Foot is recognized in the industry as the original maker of a 10-1/4” worm drive machine and many loyal customers will not accept imitations of the original Big Foot product.  They’re made for frames by a framer and have a balanced machine that feels good in your hands and comfortable during long projects
Big Foot has, without question, the best blade on the market for 10-1/4” machines.  They’ve struck the perfect balance between a thin kerf and the ability to make a perfectly straight, controlled cut without going off-line due to blade flex. These blades are rugged enough to take on the toughest job-site conditions.
All of the above means that your projects will be done sooner and easier, without sacrificing quality!
We hand-build each Big Foot Saw in the USA.  Each one is assembled in Henderson, NV.  Prior to going on a SKILSAW® worm drive motor, we tap the threads, pop the rivets, machine the faces, drill the holes and hand check each finished saw to ensure it’s nothing less than what we would want to use in the field ourselves.
And if this incredible saw isn’t enough of a deal, they’ll send you a free Big Foot T-shirt when you return your warranty card!
The 10-1/4″ Big Foot Saw comes standard with a U-Ground cord but is also available with a Twist lock, just ask your dealer when ordering.
Amperage (A): 15
Arbor Size (in): 0.625
Assembled Weight (lbs): 14.68
Bevel Capacity (°): 50
Bevel Stop: Yes
Blade Location: Left
Blade Material: Carbide and High Strength Steel
Blade Type: Circular Saw Blade
Blade Wrench Included: Yes – Loose
Blades Included: 1
CSA Certified: No
Tool Storage: No Case Included
Color / Finish: Red Gray Black
Cord Length (in): 96
Cordless / Corded: Corded
Country of Origin: CHN
Depth Adjustment: Yes
Dust Blower: No
Dust Collection: No
Dust Port: No
ETL Listed: No
Electric Motor Brake: No
External Motor Brush Access: Yes
Fence Included: No
Height (in): 8
Housing Material: Aluminum
Integrated Laser Guide: No
Integrated Rafter Hook: Yes
Integrated Work Light: Not Featured
Internet Product Code (IPC): 7DA1C347038
Length (in): 19
Maximum Cut Depth @ 45° (in): 2.75
Maximum Cut Depth @ 90° (in): 3.875
Maximum RPM – No Load: 5300
Net Tool Weight (lbs): 14.68
Package Contents: Circular Saw – Blade – Wrench – Instructions
Package Weight: 22
Powered Tool Power Source: Electric – Corded
Saw Blade Diameter (in): 10¼ in
Saw Drive: Worm Drive Geared
Shoe Material: Magnesium
Tool-Less Blade Changing: No
UL Listed: No
Variable Speed: No
Voltage: 120
Warranty: 1 year
Width (in): 7
MFG Model # (Series): SC-1025SU
MFG Part # (OEM): SC-1025SU
Product Name: 10-1/4 In. Worm Drive Beam Saw
UPC: 637827125175
Warranty: All products sold by A.N.CO. Fastener Sales are backed by the full manufacturer’s warranty. We are an Official Dealer and an Authorized Service Center for all Big Foot Tools.
We strive to provide as much information as we can for each of our products. Since web links frequently change, we do not provide links to warranties, manuals, parts diagrams, specification sheets, etc. This information is best obtained directly from the manufacturer’s website or via a Google search.  Our Parts & Service Department is staffed by experts in all product lines that we carry. Contact them by phone at 541-485-2800 or via email or by using our contact form at the bottom of each page.
